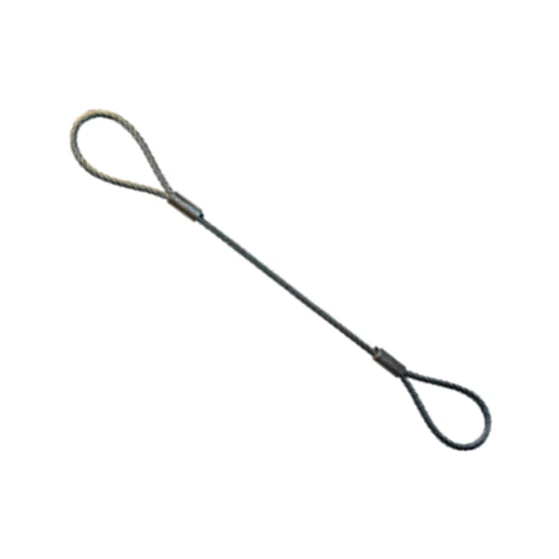

Cowlitz River Rigging Custom Wire Rope Sling

Have our certified rigging inspectors design and build a custom solution just for you. Logging, longshore, industrial — we have a solution. Please call us for a quote.

pe Dia. (In.)   RATED CAPACITY – Tons* E-E Eye Dimensions E-HT Thimble E-EH Hook Vert. Choker Hitch ***  Basket Hitch 60° 45° 30º A B A B WLL** Tons E R 6 x 19 XIP® 1/4 0.65 0.48 1.3 1.1 0.91 0.65 2 4 0.88 1.63 3/4 0.89 3.34 5/16 1 0.74 2 1.7 1.4 1 2.5 5 1.06 1.88 1 0.91 3.81 3/8 1.4 1.1 2.9 2.5 2 1.4 3 6 1.13 2.13 1 1/2 1 4.14 7/16 1.9 1.4 3.9 3.4 2.7 1.9 3.5 7 1.25 2.38 2 1.09 4.69 1/2 2.5 1.9 5.1 4.4 3.6 2.5 4 8 1.5 2.75 3 1.36 5.77 9/16 3.2 2.4 6.4 5.5 4.5 3.2 4.5 9 1.5 2.75 5 1.61 7.37 5/8 3.9 2.9 7.8 6.8 5.5 3.9 5 10 1.75 3.25 5 1.61 7.37 3/4 5.6 4.1 11 9.7 7.9 5.6 6 12 2 3.75 7 1/2 2.08 9.07 7/8 7.6 5.6 15 13 11 7.6 7 14 2.25 4.25 10 2.27 10.08 1 9.8 7.2 20 17 14 9.8 8 16 2.5 4.5 10 2.27 10.08 1 1/8 12 9.1 24 21 17 12 9 18 2.88 5.13 15 3.02 12.53 6 x 36 XIP® 1 1/4 15 11 30 26 21 15 10 20 2.88 5.13 15 3.02 12.53 1 3/8 18 13 36 31 25 18 11 22 3.5 6.25 AH-22 3.02 12.53 1 1/2 21 16 42 37 30 21 12 24 3.5 6.25 AH-22 3.02 12.53 1 5/8 24 18 49 42 35 24 13 26 4 8 AH-30 3.25 14.06 1 3/4 28 21 57 49 40 28 14 28 4.5 9 AH-37 3 18.19 2 37 28 73 63 52 37 16 32 6 12 AH-45 3.38 20.12 2 1/4 44 35 89 77 63 44 18 36 7 14 AH-60 4.12 23.72 2 1/2 54 42 109 94 77 54 20 40           2 3/4 65 51 130 113 92 65 22 44           3 77 60 153 133 108 77 24 48           3 1/2 102 79 203 176 144 102 28 56           4 130 101 260 224 183 130 32 64
