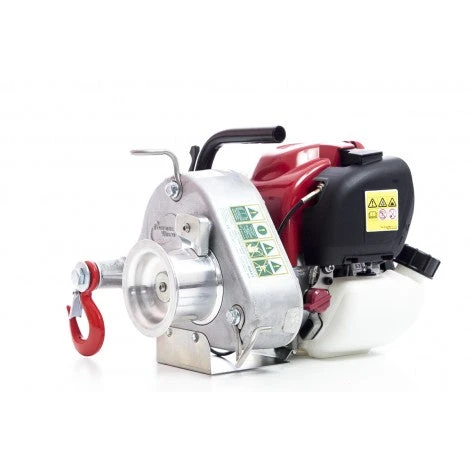

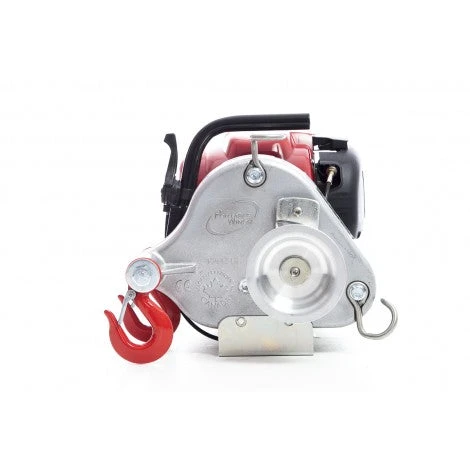

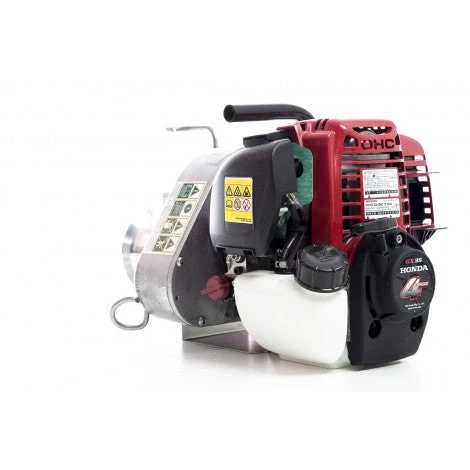

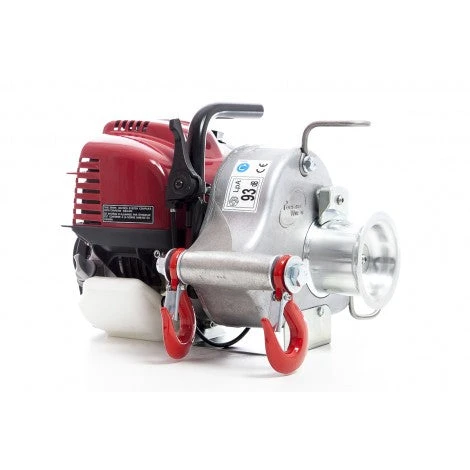

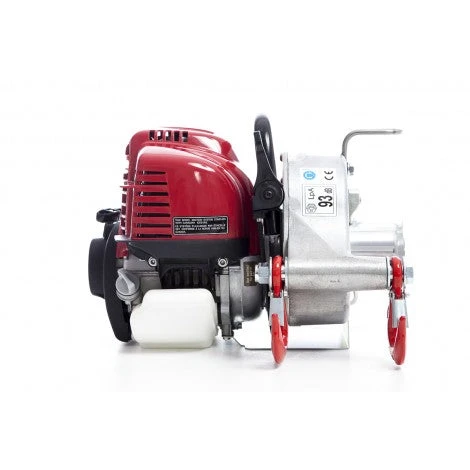

GAS-POWERED PULLING WINCH

#GX35PCW3000

Maximum Pulling Force With Standard Drum : 1,600 lbs.
Double Line Pulling Force With Standard Drum : 3,200 lbs.

Speed-

76 mm drum : 33 ft. /min

Rope –

Length : Unlimited
Pulling : Double braided with low stretch (not included)
Minimum Diameter  : 3/8″
Maximum Diameter  : 1/2″
Ideal diameter  : 3/8″

Engine/Motor & Gear Box-

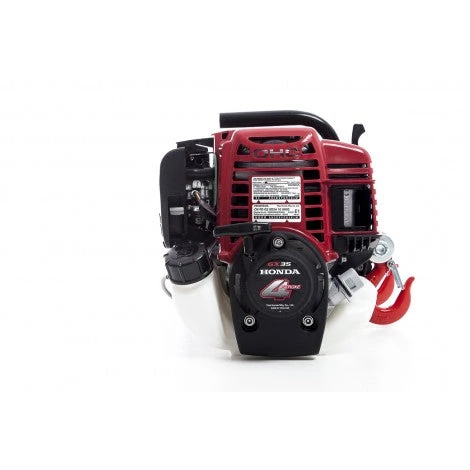

Engine/Motor : Honda 4-stroke GX35 cc – all positions
Clutch : N/A – Direct Drive
Gear Box and Gears : Aluminium alloy gear box. Heat treated 3-stage helical spur gears.
Shafts mounted on ball bearings. Oil bath lubrication.
Gear Ratio : 200:1
Brake : Anti-reversing roller clutch bearing
Work Cycle : Continuous

–

–Included : Polyester sling 60 mm x 2 m (PCA-1260)

Part # POR PCW3000
